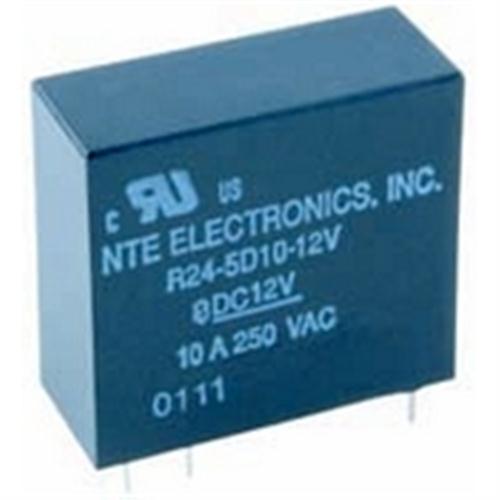

RELAY-SPDT 10AMP 12VDC PC BOARD MOUNT UPRIGHT EPOXY SEALED
Our Price:
$
9.21
Product Code:
NTE_R24-5D10-12V
Qty:
Description
Technical Specs
Extended Information
Relay-Spdt 10Amp 12Vdc Pc Board Mount Upright Epoxy Sealed
Brand/Series
R24 Series
Contact Form
SPDT
Current Rating
10 A
Current, Rating
10 A
Dielectric Rating
4000 V (RMS)
Dimensions
1.140 L x 1.030 W x 0.476 H in.
Function
Power
Material, Contact
Silver Cadmium Oxide
Mounting Type
PCB
Number of Pins
5
Relay Type
Electro Mechanical
Resistance, Coil
215 Ohms
Resistance, Contact
1000 Megohms (Min.)
Standards
UL, CSA
Temperature, Operating, Maximum
70 ÁC
Temperature, Operating, Minimum
-40 ÁC
Termination
Solder
Voltage, Control
12 VDC
Voltage, Rating
380 VAC
